10-bit, SD, HD and 2K output
AJA's T-TAP™ provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt™ to deliver high-quality 10-bit SD, HD and 2K video and embedded audio output from any compatible Mac.
Smaller than a deck of playing cards, T-TAP offers broadcast-quality performance you can fit in the palm of your hand.

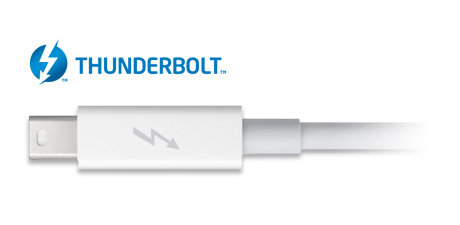

Simple to setup and use, T-TAP connects to your Mac via the blazing-fast Thunderbolt™ connection which provides the bandwidth necessary for full broadcast-quality video and audio output.
Because T-TAP is powered via the Thunderbolt™ connection, there's no need for an additional power supply, minimizing cabling and maximizing portability.

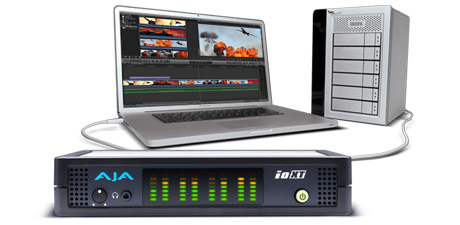

The power of Io XT
Based on the same architecture as AJA's Io XT Thunderbolt™ I/O, T-TAP offers full 10-bit broadcast-quality output. 10-bit quality is far superior to DisplayPort adapters that only support 8-bit and are not true video output solutions for professional applications.

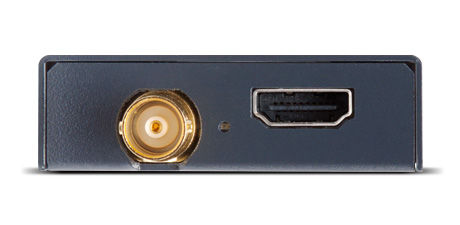

T-TAP features HD/SD SDI and HDMI outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer gear.
Need a compact solution for 3D monitoring? No problem. T-TAP can output directly from the HDMI output to 3D HDMI monitors for stereoscopic review, without the need for any additional hardware.
It may be compact, but T-TAP doesn't compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1 - or even 7.1 mixes.
|Aansluitingen||Thunderbolt, HD/SD SDI, HDMI 1.4a|
|Technische Specificatie||Video Formats 525i 29.97 625i 25 720P 50, 59.94, 60 1080i 25, 29.97, 30 1080PsF 23.98, 24, 25, 29.97 1080p 23.98, 24, 25, 29.97 2K (4:2:2) 2048 x 1080PsF 24, 25 2048 x 1080P 23.98, 24, 25 Video Outputs Digital SD/HD SDI, SMPTE-259/292/296, 8- or 10-bits Single Link 4:2:2 (1 x BNC) HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD Audio Outputs Digital 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous Physical Width: 2.95" (7.5cm) Depth: 1.18" (3cm) Height: 2.28" (5.8cm) Power: 5V Thunderbolt Bus powered (6.5 watts peak comsumption) Interface: Thunderbolt (Single p|
|Kona voor MAC||Niet beschikbaar|
|Kona voor PC||Niet beschikbaar|
|Host controller||Thunderbolt adapter|
